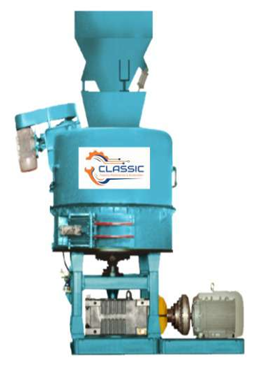

Sand mixing machine is a mechanical device used for mixing sand, binders, and water to produce molds and cores for casting metal. It is an essential tool in the foundry industry, where metal casting is a critical process.

Sand mixers are strong machines for heavy-duty applications and offered 12TPH to 70 TPH as a single machine.

Mixing tank with wear-resistant coating with small ceramic tiles. Mixing system with wear-resistant bottom rotating ploughs.

One independent high-speed turbine with wear-resistant steel blades, for intensive mixing.

Our mixers are designed and built to obtain a sand with characteristics suited to ensure an optimal and efficient moulding, especially with high pressure automatic moulding machines. They are equipped with (optional) specific systems to control weight, humidity and temperature of the incoming sand, Aquatest, Which will automatically calculate the water addition needed. Pneumatic injection of additives directly in to the mixing of the sand will improve the quality of mix and reduces the wastage.

Sand Storage Hopper are used to store the Fresh, reclaimed, Return sand in large capacity. This hopper is fabricated from MS Channels, angle and plates. Bottom side of the hopper connected with Belt conveyor to take the sand from storage hopper. Specially designed Round shaped cylindrical type silos are mostly used to store No-Bake and CO2 Mould in large quantity. No-Bake / CO2 processed Reclaimed sands has less flow ability to avoid and to get easy sand flow round silos are used. To avoid the sand choking and to give the free movement the sand Special engineer uni-flow arrangement is made in the bottom of the hopper and Load cone unit is mounted inside of the hopper to avoid direct load over the conveyor. These load cone unit will carry the total sand load and it will guide the sand to move freely.

• CAPACITY FRONT 10Ton/hr TO 100Tons/hr
• ROUND / RECTANGULAR SHAPED HOPPER ARE USED AS PER THE APPLICATION
• STAINLESS STEEL OR FRP LINING CAN BE DONE (OPTIONAL)

Conveyor, any of various devices that provide mechanized movement of material, as in a factory; they are used principally in industrial applications but also on large farms, in warehousing and freight-handling, and in movement of raw materials.

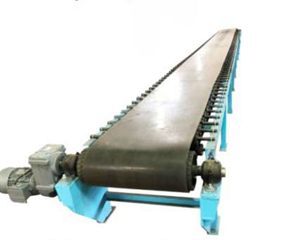

Belt conveyors provide an effective way to move charge material from a lower level to a higher level, such as from a scrap storage area to a holding hopper on the melt deck. They are fast, quiet and generate minimal dust.

Pneumatic conveying systems use a series of pipelines that move products by pumping air. These products typically consist of powders or granules. These systems function by moving materials through enclosed, airtight pipelines through a combination of airflow or another type of pressure.

• CAPACITY 3 TON TO 8 TON PER HOUR

The Classic Sand Master measures compatibility and sand strength from a 50 mm test sand sample extracted from the mixer. Water is added to the mix based on the compatibility measurements. From the sand strength measurements, the bentonite requirements are calculated and can be adjusted in small increments in following batches towards a target sand strength.

As options, the Classic Sand Master can include measurements of return sand temperature and moisture before the mixer. This is particularly relevant for low moisture contents, or for return moisture contents and sand temperatures with large variations.

Water is added in two stages : Pre-water in the beginning of the mixing cycle Trim-water after measurement of compatibility. If the moisture sensor option is included, then up to 100% pre-water can be added.

Automatic water addition via compatibility : The Classic Sand Master automatically takes and samples from the mixer, measures compatibility and sand strength and determines the necessary amount of water.

The Classic Sand Master automatically adapts itself to the sand

SUITABLE FOR ALL KIND OF INTENSIVE MIXER

• CAPACITIES FROM 500 KGS TO 5000 KGS
• DRIVEN WITH IMPORTED VIBRO MOTOR
• UNIFORM SAND DISCHARGE

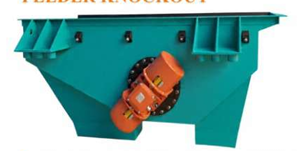

Knockout Cum Feeder with double eccentric shaft as well as unbalance vibromotor technology which makes high amplitudes and effective forward movement by this the castings are separated from sand and transported to the handling zone.

INLINE KNOCKOUT MACHINE is of free floating twin eccentric shaft design. The main body is supported on a set of coil springs. The rotating eccentric shaft assembly is fitted at the top of the trough. The shaft run on high quality anti friction bearings. The bearings are well protected by housings to eliminate the entry of dust particles, to achieve longer life.

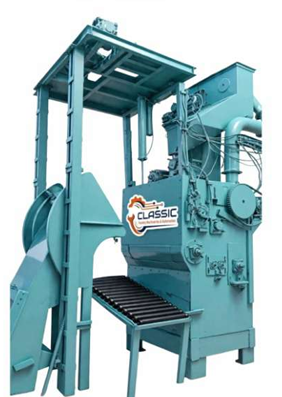

A Shot blasting machine is an enclosed equipment designed for abrasive blasting for cleaning and preparing metal, stone and other surfaces. It is a machine for shot peening, cleaning metal parts such as forging, casting parts, steel surfaces, heavy metal structures, rusted metal parts etc.

Our shot blasting machines offer you almost unlimited options for surface finishing from deburring, descaling, de-sanding and rust removal to roughening, cosmetic blasting, smoothing and edge rounding all the way to shot peening. After all, the functionality and aesthetics of surfaces are not only an important sign of quality for technical products, they also contribute significantly to their success on the market. Surface finishing is therefore nearly always essential and has to be integrated into existing production processes as an additional, value-added step.

• CAPACITY VARIES FROM 250Kgs TO 5000Kgs
• PLC AND VFD CONTROLLED OPTIONS
• MAGNETIC SHOT SEPERATOR GIVES LONGER LIFE FOR
• CONSUMABLE SPARES WITH LESSER CYCLE TIME
• MANGANESE STEEL LINING GIVES MAINTAINANCE FREE OPERATION
• DIRECT DRIVE GEARED MOTOR ARE USED FOR SMOOTHER OPERATION
• CUSTOMIZED CABIN AND SIZE AS PER CUSTOMER REQUIREMENT CAN BE MADE

It is a casting process that involves the use of chemical binders to bond the molding sand. Sand is conveyed to the mold fill station in preparation for filling of the mold. A mixer is used to blend the sand with the chemical binder and catalyst. As the sand exits the mixer, the binder begins the chemical process of hardening. This method of mold filling can be used for each half of the mold (cope and drag). Each mold half is then compacted to form a strong and dense mold. A rollover is then used to remove the mold half from the pattern box. After the sand has set, a mold wash may be applied. Cores, if required, are set into the drag and the cope is closed over the cores to complete the mold. A series of mold handling cars and conveyors move the mold into position for pouring. Once poured, the mold is allowed to cool before shake-out. The shake-out process involves breaking the molded sand away from the casting. The casting then proceeds to a casting finishing area for riser removal, casting finishing and finalization. The broken pieces of molded sand are further broken down until the sand is returned to grain size. The sand can now be either reclaimed for reuse in the casting process or removed for disposal. Thermal reclamation is the most efficient, complete method of Nobake sand reclamation.

• Capacity from 10 Tons/Hr to 80 Ton/Hr
• Driven by direct drive geared motor with non return mechanism
• Stainless steel bottom lining gives long life

• Ranges To Suit Belt Conveyor 300mm to 1200mm
• High Gauss Value Permanent Magnets are Used
• Driven with Geared Motors

Magnetics manufactures suspended permanent magnetic over band separators that are designed to eliminate tramp metal from the product carried by a belt, vibratory feeders or by inclined planes. Overbands are mainly used to protect machines such as crushers, shredders, and others, to remove ferrous particles and purify products (Industries like Foundries, Coal Mines, Cement Works, Food, Sponge Iron, Charcoal, Glass, Chemical Industries and Domestic waste recycling Plants). Permanent magnetic over band separators are used when an automatic removal of ferrous contamination is necessary. If not then fixed permanent suspension.

• Capacity from 10ton/hr to 80ton/hr
• FRP LINING GIVES LONG LIFE
• DRIVEN WITH DIRECT DRIVE
• GEARED MOTORS

polygonal sieve is specially designed for sieving the foundry return sand.ss mesh is used for sieving of the sand over the rotary drum type siever frame for longer life.the receiving chute is designed in such a way that the sand will not get struck in anyway. dust extraction arrangement is made on the top to get free from pollution.the total system is driven by a worm reduction gear unit and a motor supported by the anti-friction bearings Polygonal Sieve is specially designed for sieving the foundry return sand.SS Mesh is used for sieving of the sand over the Rotary drum type siever frame for longer life.

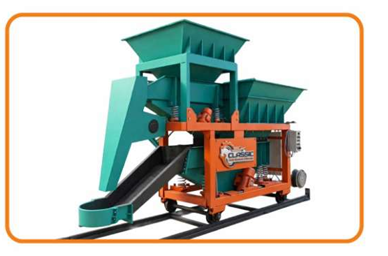

Furnace charging systems are designed to deliver charge material to the furnace quickly to allow for maximum utilization of the melting system. We offer a variety of systems for assembling and moving scrap and other charge materials to the melt deck and into the furnace. Manual charging and most magnets have difficulty keeping pace with large induction furnaces that are able to melt a full charge in less than 30 minutes. Furnace charging systems are available in various configurations and modes of motion.

• RANGES SUITABLE FOR 500Kgs FURNACE to 10Ton FURNACE
• FEEDING CAPACITY FROM 500Kgs /Hr to 5Ton/Hr
• PLC BASED CONTROLLED SYSTEM WITH VFD

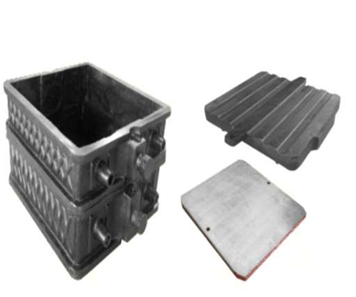

The cast iron and ductile iron moulding boxes / Mould jackets for Conventional and High-pressure moulding line. These mould boxes are specially designed to with stand in high pressure during moulding and high temperature after metal pouring.

Our mould pallet cars can be adapted for both conventional & high-pressure mould handling systems. These Cast iron mould pallet cars provide high rigidity and long life. Special self-guiding rollers made of heavy-duty alloy steel ensure that the pallet cars are aligned when moving over the rails. Pallet cars are designed with grooves on the top surface, which will allow the hot gases to escape easily from mould boxes after metal pouring.
